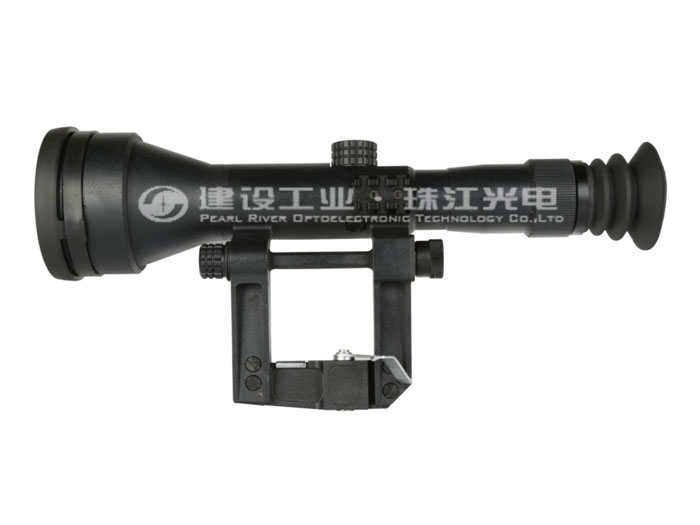

CS/O06型微光瞄準鏡

Type CS/ON06 Night Vision Sight

---

裝備概述

CS/O06型微光瞄準鏡是用于夜間對400m以內的目標實施瞄準射擊和戰場觀察。當目標寬度為0.5m時,可概略測定目標距離。本微光瞄準鏡采用超二代像增強器2050型，并具強亮分劃、弱亮分劃和暗分劃三種分劃形式，可針對目標背景亮度的不同選擇不同的分劃形式實施瞄準射擊。

Summary

Type CS/ON06 Night Vision Sight is used for target shooting and battlefield observation at night for targets within 400m. When the target width is 0.5m, the target distance can be roughly measured.B2 Night Vision uses the super second-generation image Intensifier 2050 type, and has the strong Liang stroke, the weak Liang row and the dark divide three kind of partition form, may carry on the target shooting according to the different choice different partition form of the goal background brightness.

技術參數

倍 率4×

視 場13°

出瞳直徑≥7毫米

出瞳距離≥30毫米

分 辨 力在微光分辨力板的對比度為35%～40%，照度為1×10-3Lx的條件下，夜間狀態軸上分辨力不大于0.83毫弧度

視距性能大氣能見度大于15千米，目標背景為中等對比度，目標照度為1×10-3Lx時，夜視識別目標人物距離不小于400米

視 度-0.5～-1屈光度

距離分劃裝定范圍400米

分劃調節范圍±8密位

零位走動量(含重復裝夾精度)≤0.5密位

重 量≤0.83千克

Main specificationsk

Magnification4×

Field of view13°

Exit pupil diameter≥7mm

Exit pupil distance≥30mm

Resolution≤0.83 mrad (at 10-3Lx,contrast 35%～40% on the scotopic resolution board)

Stadia capability≥400m(at 10-3Lx,medium contrast background, atmosphere visibility is more than 15km)

Diopter adjustment range-0.5～-1

Range setting scale400m

Reticle adjustment range±8mil

Zero position motion (including repeat setting error)≤0.5mil

Weight≤0.83Kg

---
