白光瞄系列

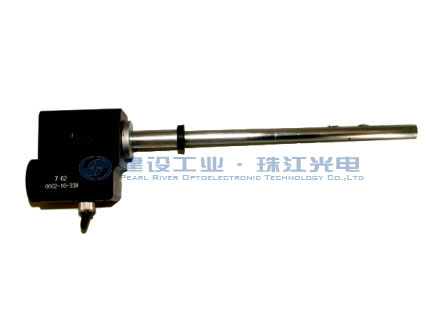

5.56-120毫米激光校槍鏡
5.56-120毫米激光校槍鏡
The 5.56—120mm Automatic Rifle Llaser Rifle Mirror
主要用途
5.56毫米自動步槍激光校槍鏡主要用于背景照度小于50Lx，近距離對5.56毫米口徑槍族的白光瞄準鏡、微光瞄準鏡進行初步校正。
Summary
The 5.56mm automatic rifle laser rifle mirror is mainly used for Beijing illuminance less than 50Lx, and the white light sight and low-light sight of the 5.56mm calibre gun family are corrected at close range. Continuous working time
技術參數
連續工作時間 | 1節CR2高能鋰電池10小時以上 |
激光發散角 | 不大于1mrad |
工作距離 | 白光瞄準鏡在背景照度小于50Lx時50米距離處激光點清晰可見；微光瞄準鏡夜間在100米處激光點可見 |
校槍精度 | ≦2密位 |
重量 | ≦0.5Kg |
Main specifications
continuously working | 1 CR2 high-energy lithium battery for more than 10 hours |
Laser divergence angle | Not more than 1mrad |
Working distance | The Day Sight is clearly visible at a distance of 50 meters when the background illumination is less than 50Lx; the low-light sight is visible at 100 meters at night |
School gun accuracy | ≦2 mil |
Weight | ≦0.5Kg |
