白光瞄系列

---

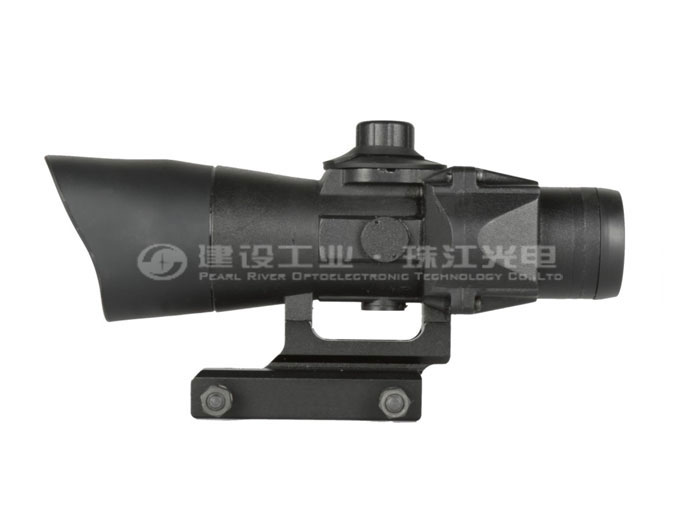

CS/OS21型白光瞄準鏡

Type CS/OS21 Day Sight

---

裝備概述

CS/OS21型白光瞄準鏡白天用于對400m內目標進行快速瞄準和精確瞄準，夜間用于瞄準發光目標、被照明目標或模糊可見目標。該瞄準鏡利用光纖采集自然光在瞄準鏡內生成紅色瞄準點，可實現近距離作戰時快速瞄準射擊的作戰需求。同時配有輔助照明裝置，可在周?chē)h(huán)境照度條昏暗或夜間時使用，用以調節分劃亮度利于瞄準。

Summary

Type CS/OS21 Day Sight is used during the day to target and pinpoint targets in 400m, aiming at luminous targets, illuminated targets or blurred visible targets at night.This sight, which uses optical fiber to collect natural light and produces red aiming point in the target, can achieve the combat demand of quick aim shooting at close range. At the same time, equipped with auxiliary lighting devices, can be used in the ambient illumination of the dim or nighttime, to adjust the intensity of the partition is aimed.

技術參數

倍 率3×
視 場	7.5°
出瞳直徑	10.2毫米
出瞳距離	44毫米
視 差	≤1′
分劃調節范圍	±15密位
分劃每檔調節量	0.25密位±10%
重 量	0.3千克
長 度	140毫米

Main specificationsk

Magnification	3×
Field of view	7.5°
Exit pupil diameter	10.2mm
Exit pupil distance	44mm
Parallax	≤1′
Reticle adjustment range	±15 mil
Each click values	0.25mil±10%
Weight	0.3Kg
Dimensions	140mm



---
